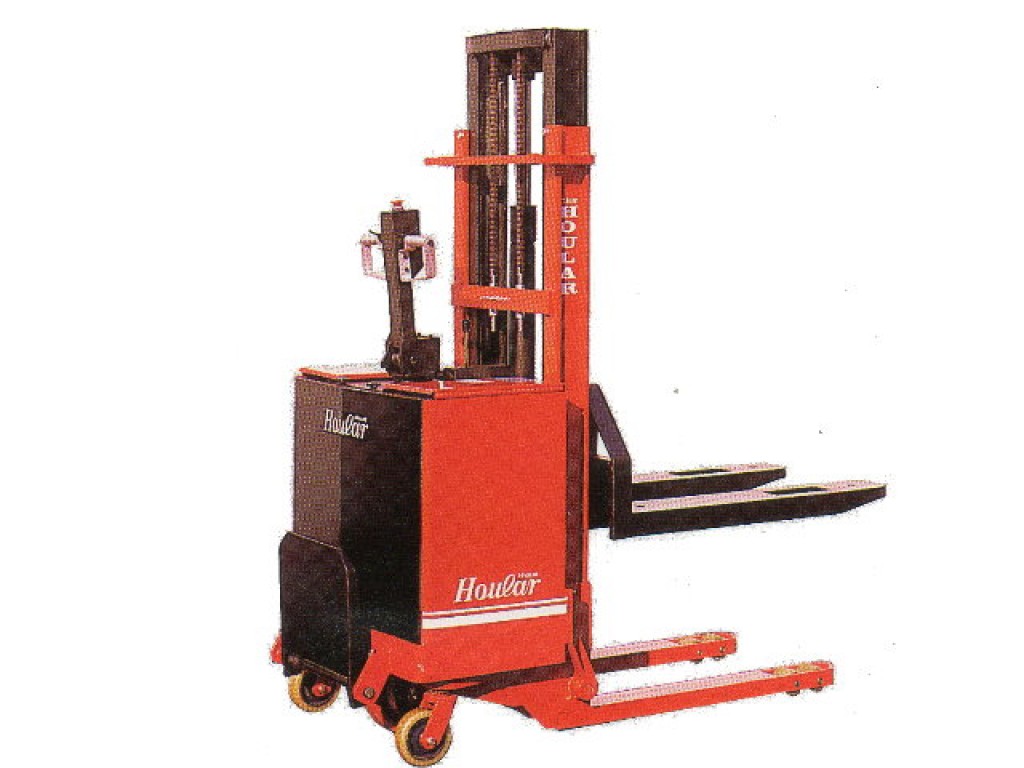

Stand-On Electric Stacker
|
|
Stand-On Electric Stacker | |||||
Model designation | TL-1.0T | TL-1.2T | TL-1.5T | ||
Load capacity (kg) | 1000 | 1200 | 1500 | ||
Lift height (mm) | 90-2500 | 90-2500 | 90-2500 | ||
Fork dimensions (mm) | Fork length | 1000 | 1000 | 1000 | |
Fork spread | 630/680 | 630/680 | 630/680 | ||
Overall length (mm) | 1900 | 1900 | 1900 | ||
Overall width (mm) | 840 | 840 | 840 | ||
Height, mast lowered/Height, mast extended (mm) | 1710/2970 | 1710/2970 | 1710/2970 | ||
Travel speed | unladen | 4.3 km/h | 5.0 km/h | 5.8 km/h | |
laden | 3.2 km/h | 4.2 km/h | 4.5 km/h | ||
Service brake | Electromagnetic | Electromagnetic | Electromagnetic | ||
Drive motor (kW) | 1.0 | 1.3 | 1.6 | ||
Lift motor (kW) | 2.0 | 2.0 | 3.0 | ||
Cherger | 24V25A | 24V30A | 24V40A | ||
Tyre size, Drive wheel | PUΦ270x90W | PUΦ270x90W | PUΦ270x90W | ||
Tyre size, Balance wheel | PUΦ150x50W | PUΦ150x50W | PUΦ150x50W | ||
Tyre, size, Load wheel | PUΦ80x70W | PUΦ80x80W | PUΦ80x90W | ||
Battery voltage/rated capacity (5h) | 24V/160 | 24V/180 | 24V/240 | ||
Service weight (kg) | 860 | 950 | 1050 | ||
